304 / 316 stainless steel double ferrule ball valve

Product Name: 304 / 316 stainless steel double ferrule ball valve

Product model: QGY1

Connection mode: thread, compression ferrule

Structural features: ferrule type at both ends

Product material: stainless steel 304 / 316

Thread standard: G, NPT, BSPT, BSP, DIN

Ferrule size: Ф6、Φ8、Ф10、Φ12、Ф14、Φ16、Ф18、Φ20、Ф22

Product pressure: ≤ 6.4 MPa

Operating temperature: ≤ 120 ℃

Medium used: water, oil, weak corrosive medium, etc

Handle material: 304, 201

Handle color: red, blue, yellow

Product Description:

304 / 316 stainless steel double ferrule ball valve has the characteristics of pressure corrosion, firm connection, high pressure resistance, good sealing and repeatability, convenient installation and maintenance, safe and reliable operation, etc. Widely used in food, pharmaceutical, petrochemical, electric power, water treatment, metallurgy and other industrial pipelines and civil automatic control industries.

Nominal pressure: 2.5MPa, 16MPa.

Applicable temperature: ≤ 150 ℃.

Applicable media: oil, water, gas and other non corrosive or corrosive media.

Manufacturing materials: 20#, 1Cr18Ni9Ti, 304, 316, 316L.

Piping: Ф 4～ Ф 42 ordinary grade precision seamless steel pipe.

Taper pipe thread: ZG, R, G, Pt, NPT, etc.

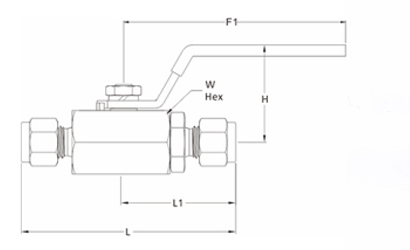

Structural drawing of 304 / 316 stainless steel double ferrule ball valve:

304 / 316 stainless steel double ferrule ball valve connection size:

304 / 316 stainless steel double ferrule ball valve connection size:
